SPESIFIKASI KENDARAAN MOTOR HONDA 2014

SPESIFIKASI  HONDA 2014








Length X Width X Height 1,863 x 675 x 1,072 mm
Wheelbase 1,255 mm
Lowest distance to the ground 140 mm
Empty weight 93 kg
Fuel tank capacity 3.7 liters
framework
The backbone framework
Telescopic front suspension type
Type rear swing arm suspension with single shock breaker
Front Tire Size 80/90 - AD 14 / C 40P
Rear Tire Size 90/90 - AD 14 / C 46P
Brakes Front hydraulic disc with single piston
Rear Brake Drum
machine
engine 4 stroke, OHC
class 110
Step Volume 108 cc
Bore x Stroke 50 x 55 mm
Compression Ratio 9.2: 1
6:27 Maximum power kW (8.52 PS) / 8000 rpm
Maximum torque N.m 8.68 (0.89 kgf.m) / 6500 rpm
Machine Lubricant Oil Capacity 0.8 lt at the turn of the periodic
Clutch Type Automatic, centrifugal, dry type
Transmsi Type Automatic, V-Matic
Pattern transfer Teeth -
Type Starter Pedal & Electric
Electrical
Battery Type MF battery, 12 V - 3 Ah
NGK spark plugs CPR9EA-9; DENSO U27EPR9
Full Transisterized Ignition, Battery






Honda Motorcycles Indonesia released its newest product Honda vario FI, this product is a development of Honda vario 110 with engine 110 cc, 4 stroke, SOHC with liquid cooling , Features Combi Brake System (CBS)and Injection (PGM-FI) from honda for motorcycles
This motorcycle is a development of the old honda vario 110 products successful in the market Indonesia




2014 Honda PCX 150 with engine Type SOHC 4 Steps, 152.9 cc , V-Matic, Cooling with liquid cooling system, Combi Braking System Brake System and Maximum power of 9.67 kW (13.1 PS) / 8500 rpm.
advanced features that are owned by Honda PCX 150 motorcycles; Idling stop system - this technology will temporarily shut off the engine after the scooter stopped in a matter of 3 seconds and came back to life when the driver pulled the lever gas , Combi Brake, Technology injection (PGM-FI), Anti-theft alarm, Standard automatic side, A magnetic ignition




Honda PCX 150 Specifications
MACHINE

Engine Type SOHC 4 Steps
Cooling with liquid cooling system
Bore x stroke 58.0 x 57.9 mm
The volume measures 152.9 cc
Compression ratio 10.6: 1
Maximum power of 9.67 kW (13.1 PS) / 8500 rpm
The maximum torque of 13.1 Nm (1:34 kgfm) / 5500 rpm
Clutch Automatic, V-Matic
Electric starter with the ACG starter system
CPR7EA-9 NGK Spark plug
DIMENSIONS
Dimensions (L x W x H) 1,917 x 738 x 1,094
Wheels Wheelbase 1,315 mm
Lowest distance to the ground 140 mm
Empty weight 129 kg
ORDER
The backbone of the framework
Telescopic front suspension
Rear suspension swing arm with dual shock absorbers
Front tire size 90/90-14M/C 46P (without tires)
100/90-14M/C Rear Tire Size 57P
Front hydraulic disc brake with 3 piston
Rear brakes Drum
Combi Braking System Brake System
CAPACITY
Fuel tank capacity 5.9 liters
Injection fuel supply system (PGM-FI)
Machine Lubricant Oil Capacity 0.8 liter in the periodic replacement
Automatic transmission, V-Matic
ELECTRICAL
12V battery - 5AH (type MF)
Full transistor ignition system, battery




Honda Blade 125 FI using larger capacity engine, with a 125 cc engine (previously 110 cc). In addition, the injection system used is also enhanced, with an oxygen sensor and catalyst in the exhaust pipe, so as to meet Euro3 emission standards.




Honda Blade 125 FI Specification

Fuel Supply System : Injection (PGM-FI/Programmed Fuel Injection)
Type of engine : 4 stroke, SOHC, Single Cylinder
Cooling System : Air Conditioning
Bore x stroke : 52.4 x 57.9 mm
Volume measures : 124.89 cc
Compression ratio : 9.3: 1
The maximum power : 7:40 kW (10.1 PS) / 8000 rpm
The maximum torque : 9.30 Nm (0.95 kgf.m) / 4000 rpm
Clutch : Multiple Wet Clutch With Coil Spring
Starter : Foot and Electric Starter
Plug : CPR6EA-9 NGK / ND U20EPR9
Battery : MF Battery 12V - 3.0 Ah
Ignition System : Full Transisterized -
Type of housing : Backbone
Type of front suspension : Telescopic
Type of rear suspension : Swing arm with double suspension
Front tire size : 70/90 - 17th / C 38P
Rear tire size : 80/90 - 17th / C 44P
Front brake : Hydraulic disc with single piston
Rear brakes : Hydraulic disc with single piston (Type Double Disc Brake)
Drum (Type Single Disc Brake)

HONDA VERZA 150 CW 2014
2014 Honda Verza 150 equipped with a 150cc engine, 4 stroke, SOHC, single-cylinder and 5 speed that has implemented a fuel supply system PGM-FI (Programmed Fuel Injection). With these machines, the Honda Verza 150 can reach a maximum speed of 110 km / h acceleration of 11.5 seconds for a distance of 0-200 meters.







2014 Honda Verza 150 Specifications
DIMENSIONS
Dimensions (L x W x H) 2,056 x 742 x 1,054 mm
Wheels Wheelbase 1,318 mm
Lowest distance to the ground 156 mm
Empty weight of 129 kg (Type CW & SW)
Seat height of 773 mm
2,000 mm Minimum Turning Radius
ORDER
Order Diamond Steel
Telescopic front suspension
Suspension Rear suspension double
Front tire size 80/100 - 17th / C 46P (Type CW Spoke tubeless & tube type)
Rear Tire Size 100/90 - 17th / C 55P (Type CW Spoke tubeless & tube type)
Front hydraulic disc brakes with dual piston
Rear brakes Drum
MACHINE
Step 4 Engine Type SOHC, single cylinder
Cooling air cooling system
Bore x stroke 57.3 x 57.8 mm
The volume measures 149.2 cc
Compression ratio 9.5: 1
Maximum power of 9.72 kW (13.2 PS) / 8500 rpm
The maximum torque of 12.7 Nm (1.29 kgf.m) / 6,000 rpm
Manual Clutch, Multiplate Wet Clutch
Starter electric starter Starter & legs
CPR9EA-9 NGK Spark plug
CAPACITY
Fuel tank capacity of 12.2 liters
Machine Lubricant Oil Capacity 1 liter in the periodic replacement
5 speed transmission
Gear shift pattern 1-N-2-3-4-5
ELECTRICAL
Aki 12 V - 3.5 Ah
Ignition System Full Transisterized

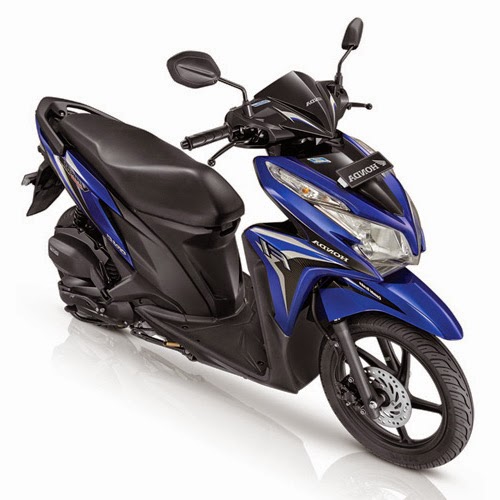

VARIO CBS ISS


Dimensi
Dimensi (P x L x T) 1,918 x 689 x 1,103 mm
Jarak sumbu Roda 1,281 mm
Jarak terendah dengan tanah 128 mm
Berat kosong 112 kg
Rangka
Rangka Tulang punggung
Suspensi depan Teleskopik
Suspensi belakang Lengan ayun Shockbreaker tunggal
Ukuran Ban depan 80/90 – 14 M/C 40P
Ukuran Ban Belakang 90/90 – 14 M/C 46P
Rem depan Cakram hidrolik piston tunggal
Rem belakang Tromol
Sistem Pengereman
Tromol (Tipe STD)
Combi Brake System (Tipe CBS ISS)
Mesin
Tipe mesin 4 langkah, SOHC
Sistem pendinginan Pendinginan udara dengan cairan
Diameter x langkah 52,4 x 57,9 mm
Volume langkah 124.8 cc
Perbandingan kompresi 11,0 : 1
Daya maksimum 11,3 PS / 8500 rpm
Torsi maksimum 1,1 kgf.m / 5000 rpm
Kopling Otomatis, sentrifugal, tipe kering
Starter Pedal & Elektrik
Busi ND U22EPR-9, CPR7EA-9
Sistem Pembakaran Injeksi (PGM-FI)
Kapasitas
Kapasitas Tangki bahan bakar 5.5 liter
Kapasitas Pelumas Mesin 0,8 liter pada penggantian periodik
Transmisi Otomatis, V-Matic
Kelistrikan
Aki 12 V – 5 Ah (tipe MF)
Sistem pengapian Full transisterize, Baterai
Performa
Akselerasi 0 – 200 m 12.8 detik (menggunakan alat ukur performa, sumber: Honda R&D)
Kecepatan Maksimal
96.8 km/h (menggunakan alat ukur performa)
126 km/h (Hasil Ultimate Journey Touring Jawa Bali, Maret 2012)
Konsumsi Bahan Bakar
Hingga 52.1 KM / liter (metode ECE R40)
78,8 KM / liter (Hasil Ultimate Journey Touring Jawa Bali, Maret 2012)
ISS lebih irit hingga 16% (AHM Lab, metode ECE R40)





Spesifikasi Honda CB150R

Motor Honda CB150R ini hadir di Indonesia untuk meramaikan motor di kancah 150 cc. Dengan spesifikasi yang melekat di tubuhnya, motor ini percaya diri untuk mulai mulai dipasarkan ke masyarakat Indonesia sampai tahun 2014 ini. Desain dari motor CB150R ini tampil fresh dengan balutan body yang sporty. Spesifikasi Honda CB150R ini beragam, diantaranya adalah dapur pacunya berkapasitas 150 cc dengan 4-stroke ada didalamnya. DOHC dan 4-valve juga ikut meramaikan canggihnya mesin motor ini. Silinder tunggal yang berpendingin cairan mampu memuntahkan tenaga besar. Spesifikasi motor Honda CB150R ini juga menghadirkan teknologi auto fan yang mampu mengatur suhu sehingga panas dari mesin motor ini dapat terjaga dan konsisten. Hadir juga teknologi terbaru Honda yaitu PGM-FI (Programmed Fuel Injection) yang mampu meminum bahan bakar seminimal mungkin namun dapat mengeluarkan tenaga dengan maksimal. Para pembaca yang setia, sekarang Semisena.com akan menampilkan spesifikasi Honda CB150R pada tabel di bawah ini. Spesifikasi yang ada dalam tabel dibawah ini semisena sajikan secara lengkap untuk memudahkan anda dalam mengetahui spesifikasi dari motor ini. Berikut rincian spesifikasi dari Honda CB150R StreetFire ini:

Panjang X lebar X tinggi 2.008 x 719 x 1.061 mm
Jarak Sumbu Roda 1.288 mm
Jarak terendah ke tanah 148 mm
Berat kosong 129 kg
Tipe rangka Diamond Steel (Truss Frame)
Tipe suspensi depan Teleskopik
Tipe suspensi belakang Lengan Ayun dengan Suspensi Tunggal (Sistem Suspensi Pro-Link)
Ukuran ban depan 80/90 � 17M/C 44P (Tubeless)
Ukuran ban belakang 100/80 � 17M/C 52P (Tubeless)
Rem depan Cakram Hidrolik, dengan Piston Ganda
Rem belakang Cakram Hidrolik, dengan Piston Tunggal
Kapasitas tangki bahan bakar 12 liter
Tipe mesin 4-Langkah, DOHC, 4-Katup, Silinder Tunggal
Diameter x langkah 63,5 x 47,2 mm
Volume langkah 149,48 cm
Perbandingan Kompresi 11.0 : 1
Daya Maksimum 12,5 kW (17,0 PS)/ 10.000 rpm
Torsi Maksimum 13,1 Nm (1,34 kgf.m)/ 8.000 rpm
Kapasitas Minyak Pelumas Mesin 1,0 Liter pada Penggantian Periodik
Kopling Otomatis -
Gigi Transmsi 6-Kecepatan
Pola Pengoperan Gigi 1 � N � 2 � 3 � 4 � 5 � 6
Starter Pedal & Elektrik
Aki MF 12 V � 5 Ah
Busi -
Sistem Pengapian Full TransistorizeD












2014 Honda CBR 150R
2014 Honda CBR 150R with CS150RE engine, Liquid-Cooled, 4-stroke, DOHC, Single Cylinder 150cc, capable of producing 17.8 hp at 10,500 rpm with torque of 12.6 Nm at 8,500 rpm with a 6-speed transmission. 2014 Honda CBR 150R Born from racing circuit, the Honda CBR 150R ready to bolt with you. 2014 Honda CBR 150R for display in 2014, changed only in the striping and color

2014 Honda CBR 150R Specification
Dimension
Length X Width X Height 1,977 x 701 x 1,130 mm
Wheelbase 1310 mm
Lowest distance to the ground 190 mm
Empty weight 138kg
Fuel tank capacity of 13.1 liters
Framework
framework Twin Tube Diamond
Telescopic front suspension type
Type Single Suspension rear suspension (monoshock)
Front Tire Size 100/80 - 17M / C 52P (tubeless)
Rear Tire Size 130/70 - 17M / C 62P (tubeless)
Hydraulic Disc Brakes Front, with Dual Piston
Rear Hydraulic Disc Brake with Single Piston
Machine
CS150RE engine, Liquid-Cooled, 4-stroke, DOHC, Single Cylinder
Class 150
Step Volume 149.4
Bore x Stroke 63.5 x 47.2
Compression Ratio 11.0: 1
Maximum Power 13.11 kW (17.8 PS) / 10,500 rpm
Maximum torque of 12.66 Nm (1,29 kgf.m) / 8500 rpm
Machine Lubricant Oil Capacity 1.0 Liter on Periodic Replacement
Clutch Type Manual, Wet Multiplate with Coil Springs
Type 6-speed Transmsi
Pattern transfer Teeth 1-N-2-3-4-5-6
Starter Type Electric Starter
Electrical
Battery Type -
Full transistorized ignition
